~~Probably an odd bug in WG Tunnel - either upload or download slow based on MTU~~ Edit: And it was an IPv6 leak (for the most part)
from user224@lemmy.sdf.org to selfhosted@lemmy.world on 28 Oct 16:42
https://lemmy.sdf.org/post/44817721

Edit: Yay, with MTU < 1280 the client seems to just disable IPv6, including the ::/0 in AllowedIPs. Disabling IPv6 also fixed the low upload speed (probably getting a better route over Wireguard). That also explains why the differences didn’t present themselves with iperf3, as that absolutely had to use Wireguard.
What remains now is why TCP download takes such a huge hit, while it doesn’t on laptop.

Not asking for support (anymore). I tried the official Wireguard client, and the issue doesn’t present itself there.
So likely a bug, but a bit interesting.
Welp, few hours of playing around and searching wasted. At least you might not waste time with it too, like I did, and I already wrote this…

App used: github.com/wgtunnel/wgtunnel

So, this seems like a bit of a magic.
“Server” has MTU of 1420, its connection is 1500. The now-limited ifconfig in Termux shows 1500 for data interface.
I’ve seen a few people mention the 80 bytes is overhead of WG.

I’ve had issues with far slower download speed (half expected), so I switched MTU to 1280 (minimum for IPv6) which worked for me in the past for Mullvad. No luck.
I’ve got an idea, that perhaps if my data interface is 1280, then I should try 1200. That worked… for download. Now upload got significantly slower. I also tried matching MTU on “server” but that made no difference. I also tried some fairly low values like 500, which worked for download, but further killed upload. So far that testing was done using speedtest.net and fast.com.

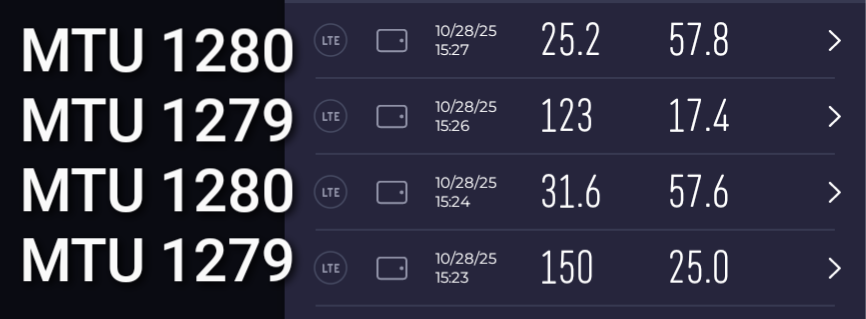

Through trial and error I’ve found:
if MTU >= 1280 then upload speed is normal, but download slower
if MTU <= 1279 then download speed is normal, but upload slower

Tailscale is using 1280, and is fine in both directions. Moving to iperf3 (seemingly unaffected by MTU changes):

Plain wireguard

Download (TCP)

[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-20.12  sec  33.2 MBytes  13.9 Mbits/sec  117            sender
[  5]   0.00-20.00  sec  32.2 MBytes  13.5 Mbits/sec                  receiver

Upload (TCP)

[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-20.00  sec   101 MBytes  42.4 Mbits/sec  401            sender
[  5]   0.00-20.17  sec   100 MBytes  41.6 Mbits/sec                  receiver

Download (UDP)

[ ID] Interval           Transfer     Bitrate         Jitter    Lost/Total Datagrams
[  5]   0.00-20.13  sec   480 MBytes   200 Mbits/sec  0.000 ms  0/410100 (0%)  sender
[  5]   0.00-20.00  sec   267 MBytes   112 Mbits/sec  0.047 ms  174331/402352 (43%)  receiver

Upload (UDP)

[ ID] Interval           Transfer     Bitrate         Jitter    Lost/Total Datagrams
[  5]   0.00-20.00  sec   477 MBytes   200 Mbits/sec  0.000 ms  0/407504 (0%)  sender
[  5]   0.00-20.54  sec   119 MBytes  48.5 Mbits/sec  0.201 ms  305999/407495 (75%)  receiver

Conclusion: TCP download significantly slower.

Tailscale

Download (TCP)

[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-20.12  sec   236 MBytes  98.6 Mbits/sec    2            sender
[  5]   0.00-20.00  sec   233 MBytes  97.7 Mbits/sec                  receiver

Upload (TCP)

[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-20.00  sec   120 MBytes  50.2 Mbits/sec  625            sender
[  5]   0.00-20.15  sec   119 MBytes  49.6 Mbits/sec                  receiver

Download (UDP)

[ ID] Interval           Transfer     Bitrate         Jitter    Lost/Total Datagrams
[  5]   0.00-20.12  sec   480 MBytes   200 Mbits/sec  0.000 ms  0/409543 (0%)  sender
[  5]   0.00-20.00  sec   254 MBytes   107 Mbits/sec  0.039 ms  176388/393285 (45%)  receiver

Upload (UDP)

[ ID] Interval           Transfer     Bitrate         Jitter    Lost/Total Datagrams
[  5]   0.00-20.00  sec   477 MBytes   200 Mbits/sec  0.000 ms  0/407167 (0%)  sender
[  5]   0.00-20.29  sec   138 MBytes  57.2 Mbits/sec  0.196 ms  289036/407167 (71%)  receiver

Conclusion: No significant difference between UDP vs TCP.

---

Note: 200 Mbits/sec in UDP tests refers to my pre-set limit, as higher speeds wouldn’t be achieved anyway. Otherwise it keeps spraying out at full speed if no limit is set.

And now for the biggest oddity: My laptop speeds are fine even with default 1420 MTU, even though it runs over hostpot.

What magic is going on in here?

Also, the VPS doesn’t have IPv6, so it’s probably not that being routed slower in one direction (as IPv6 requires 1280).
